Where are the areas most susceptible to new rock instabilities or further destabilization within existing landslide zones, based on topographic and geological factors?
You will combine vector geological maps with raster elevation data to identify areas with high landslide susceptibility. Using Python libraries developed for handling geospatial data , you will filter specific rock types, calculate slope gradients from a Digital Elevation Model (DEM), and apply a statistical threshold to pinpoint zones where topography and lithology create a critical risk of failure.
Understanding slope stability is critical for land-use planning and hazard mitigation in Alpine environments. By analyzing the relationship between lithology, slope angle, and historical instability ata, we can predict future failures before they occur. This aligns with the Swiss federal approach to hazard mapping, moving from inventory catalogs to indicative susceptibility maps using reproducible code.
Data Filtering: Query vector attributes to isolate lithologies prone to instability (Typ_code 800, 801, 802, 870) and existing instability structures (Typ_code 700, 701).
Terrain Analysis: Compute slope gradients from the DEM and calculate statistical metrics (mean) to determine the stability threshold (\(\phi\)).
Susceptibility Modeling: Apply boolean logic and raster masking to identify: 3.1. New potential instabilities on favorable lithologies where slope > \(\phi\). 3.2. Critical sub-zones within existing landslides where slope > \(\phi\).
Visualization & Export: Generate static maps highlighting risk zones with appropriate color ramps and transparency, and export summary statistics (areas).
This tutorial requires the following libraries:
rasteriogeopandasmatplotlibnumpyYou can check if they are installed (and check which version you have) by running:
libs = ["rasterio", "geopandas", "matplotlib", "numpy"]
for lib in libs:
try:
module = __import__(lib)
print(lib + " is installed")
except ImportError:
print(lib + " is NOT installed")rasterio is installed
geopandas is installed
matplotlib is installed
numpy is installedIf you encounter an error, come back to Chapter II: Setting up your Python environment and follow the instructions.
Let’s already load all the libraries we need:
import geopandas as gpd
import rasterio
from rasterio.features import rasterize, geometry_mask
import numpy as np
import matplotlib.pyplot as plt
import osYou are provided with the following input data, which you can download here:
| Name | Format | Description |
|---|---|---|
Sion_MNT25.tif |
Raster | DEM of the Sion area (© Swisstopo) at a spatial resolution of 25 m |
Bedrok_PLG.shp |
Shapefile | Bedrock geology |
Instability_Structures_PLG.shp |
Shapefile | Mapped instabilities |
Subequil_PLG_r.shp |
Shapefile | Area representing a state of sub-equilibrium. This area has been defined in the field and represents the ground truth. |

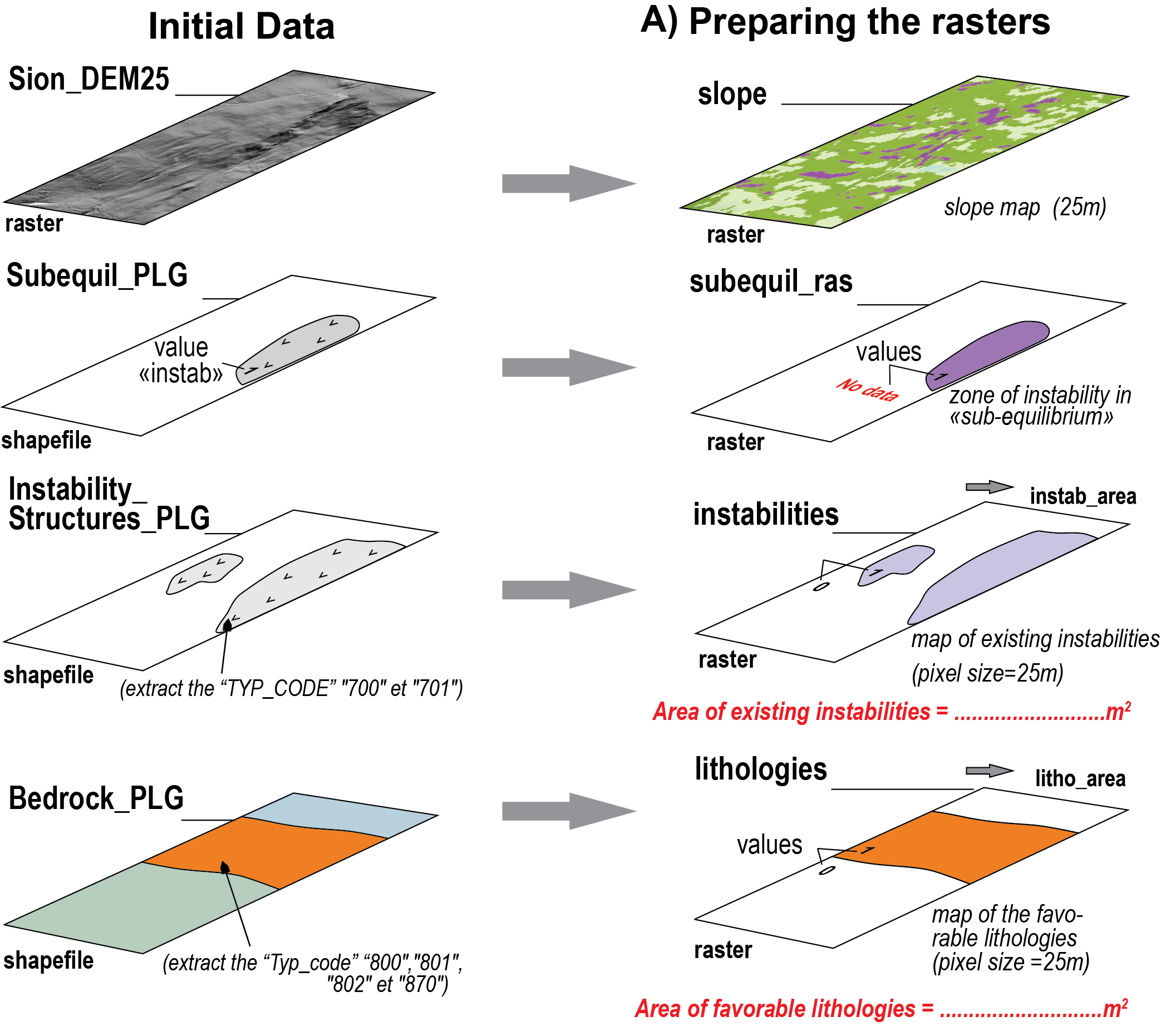

We will first prepare our data. The first step is to load the DEM at 25m from the Swiss Federal Office of Topography (swisstopo). The entire dataset is described on the swisstopo website, but we will use a subset over the region of Sion, Canton of Valais. The DEM is already provided and available in the data folder as a GeoTiFF, and we open it using the rasterio.open function.
Load the geotiff using rasterio.open as in the following block and save the following attributes as variables:
profileshapeboundscrstransformInspect all variables
with rasterio.open("data/DEM/Sion_MNT25.tif") as src:
dem = src.read(1) # The data
profile = src.profile # Raster metadata (contains all the variables below)
shape = src.shape
bounds = src.bounds
crs = src.crs
transform = src.transform # Affine transformationSecond, we will extract the lithologies that favour instabilities the geopandas library. This library is an extension of pandas specifically designed to handle geospatial data.
You may use geopandas to read a vector file (for instance shapefile) into a GeoDataFrame (gdf), which is simply a DataFrame that contains a geometry column. The example below shows how to load the Bedrok_PLG.shp shapefile with gpd.read_file and perform basic operations. Really, a gpd object represents the table of attributes you might be familiar with in QGis.
Specifying the encoding argument to utf-8 is critical to preserve French accents in the attributes.
bedrock_plg = gpd.read_file( r"data/shapefiles/Bedrok_PLG.shp", encoding="utf-8")Spend some time exploring your shapefile with the following functions:
# Print the first 5 columns
bedrock_plg.head(5)# Print the column names
bedrock_plg.columns# Query the first row/feature - remember, in Python the first row/column is represented by the index 0 (not 1)
bedrock_plg.iloc[0]# Query a specific column
bedrock_plg['Typ_code']We need to filter out the original data to keep only the lithologies of interest. This can be done using the pd.query() function with the desired condition:
select_litho = bedrock_plg.query("Typ_code == '830'")
select_litho.iloc[0].Litho'Cornieules'As you might notice, geopandas objects inherit from most pandas functions, such as query().
lithologies = bedrock_plg.query("Typ_code in ('800', '801', '802', '870')")
lithologies.iloc[0]['Litho']In the end we have:
| Typ_code | Litho | |
|---|---|---|
| 2 | 800 | Quartz-séricitoschistes bleu-vert à galets de ... |
| 11 | 870 | Quartz-séricitoschistes bleu-vert à galets de ... |
| 68 | 802 | Micro-quartzites noirs, parfois rubanés, méta-... |
| 160 | 801 | Chloritoschistes et niveaux dolomitiques ocres |

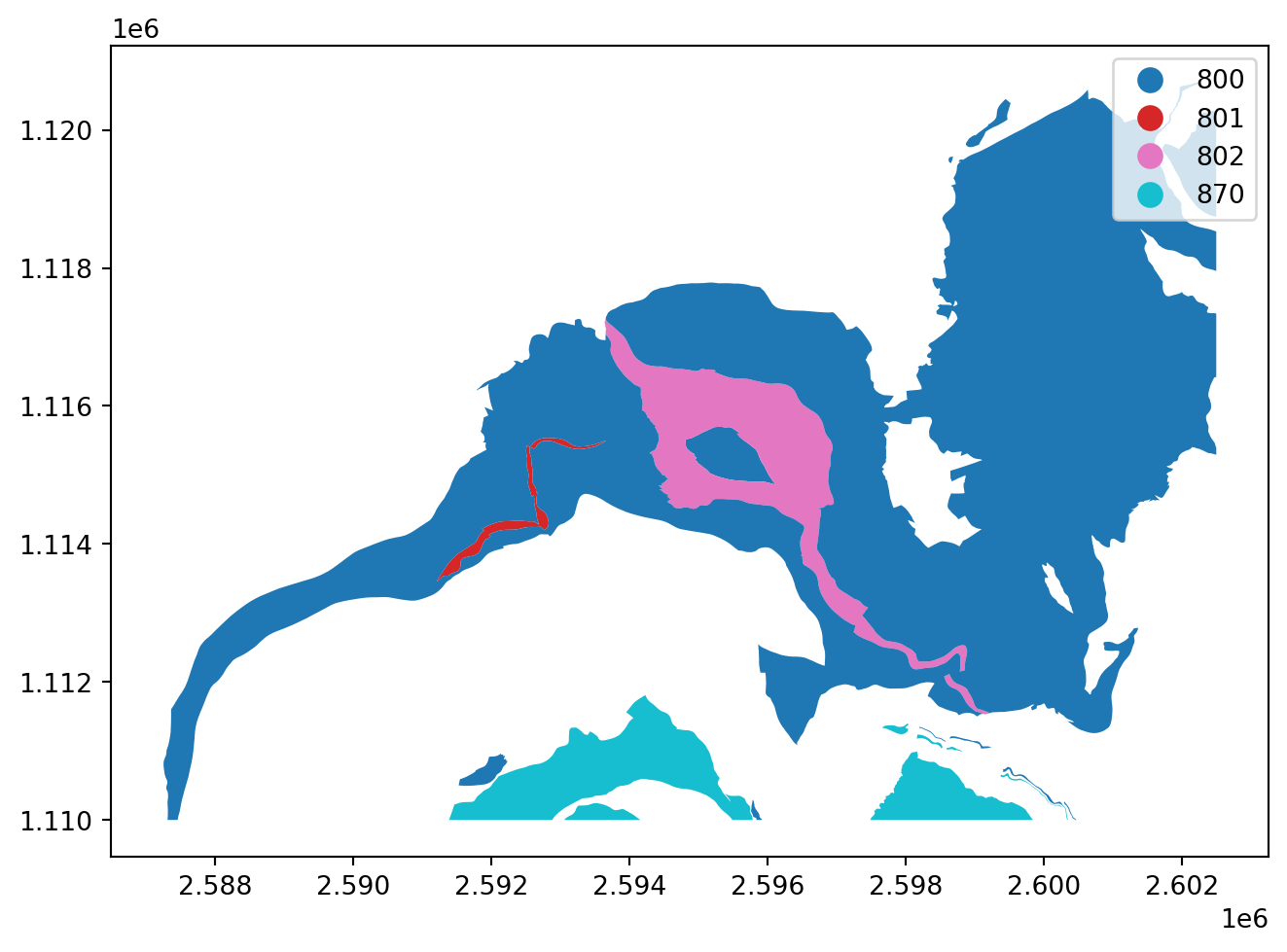

We can easily plot the favorable lithologies, colouring each polygon according to its ‘Typ_code’ attribute:
lithologies.plot( figsize=(8, 8), column="Typ_code", legend=True)
Lithologies will be used as mask in the rest of the study. In order to mask out raster data, the lithology layer needs to be converted into a raster that is aligned with the raster layer to mask (here, the Sion_MNT25.tif layer). Aligned means that the pixels of both layers have the same reference coordinates and extent, providing a 100% overlap. To ensure that, we use the shape and transform variables obtained from the DEM and pass them to rasterio’s rasterize function:
lithologiesR = rasterize(
shapes=((geom, 1) for geom in lithologies.geometry),
out_shape=shape,
transform=transform,
fill=0,
dtype="uint8"
)For each polygon in the favorable lithologies, the created pixels will have a value of 1. Other pixels will have a value of 0 (from the ‘fill’ parameter). Let’s visualize the result:

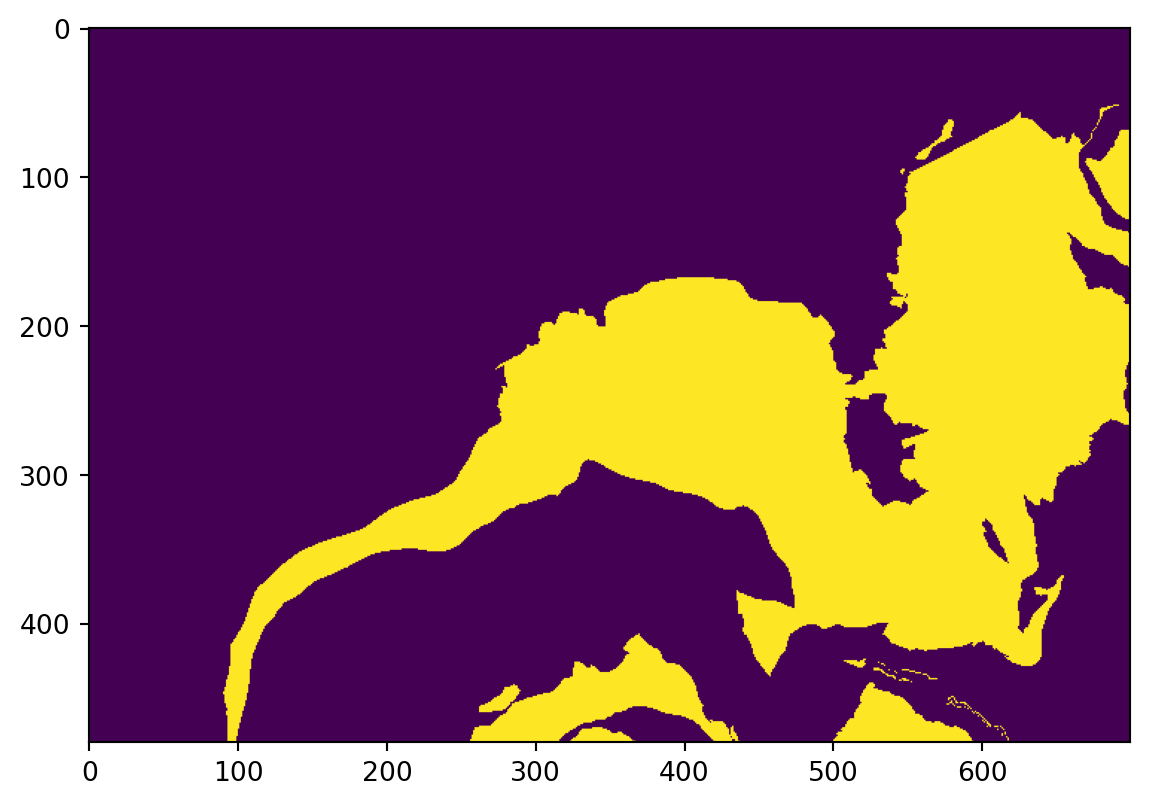

plt.imshow(lithologiesR)
The next step is to export the raster.
os library.rasterio.open function (→ we prepare the file inside which the data will be written) followed by the .write() function (→ that actually writes the data).profile for alignement
The objective here is to create a raster with the exact extent and resolution as the reference raster - here the dem variable. To ensure alignement, we pass the profile variable that we extracted from the Sion DEM to the function, which contains all required information (e.g., bounds, resolution, crs, affine transform etc.).
os.makedirs(
"data/outputs",
exist_ok=True
)
with rasterio.open(
"data/outputs/lithologiesR.tif", "w",
**profile
) as dst:
dst.write(lithologiesR, 1)The code writes a GeoTiFF file with the same properties (shape, crs, transform) as the original DEM, with one band (defined by the ‘count’ parameter).
The first assignment is to calculate the area covered by lithologies favourable to instabilities. This can essentially be done from both the shapefile and the raster.
Using the shapefile, you need to add a new column and use the .area function followed by the .sum() function.
litho_area = lithologies.area.sum()
print(f"The area of favourable lithologies computed from polygons is: {litho_area:.2f} m²")Using the raster, we first need to get the area of a pixel based on their width and height which are respectively the first and third elements of the transform variable. We can then sum the pixels (remember, all favourable lithologies have a value of 1, the other a value of 0) and multiply the result by the pixel area. We do that with numpy.
pixel_width = abs(transform[0]) # Pixel width
pixel_height = abs(transform[4]) # Pixel height
pixel_area = pixel_width * pixel_heightNow compute the area of instabilities.
pixel_count = np.sum(lithologiesR == 1)
total_area = pixel_count * pixel_areaLet’s now inspect and identify existing rock instabilities. Load the Instability_Structures_PLG shapefile following Listing 2 and inspect its features as we did for the bedrock polygons.
You can display all unique values in one column using df['col_name'].unique().
'700' and '701' from the TYP_CODE column. Save the result into a new variable called instabilities.instabilities into a raster named instabilitiesR following Listing 5.instabilitiesR to “data/outputs/instabilitiesR.tif” following Listing 7.The next step is to calculate the slope from the DEM. Most desktop GIS software implement slope calculation - so do a lot of Python packages (e.g., PyDEM). Below is an illustration of how slope is calculated from scratch using numpy. If you have time, go through the code and ask any question you might have. If you don’t, you can just use the slope variable.
The slope of a cell is usually calculated using the Horn algorithm (Horn, 1981), and considers the 8 neighbouring cells elevation (N, S, E, W, NE, NW, SE, SW). With np.roll, we can retrieve the information about each neighbouring cell by just shifting the array, for every cell at once.
north = np.roll(dem, -1, axis=0)
south = np.roll(dem, 1, axis=0)
east = np.roll(dem, 1, axis=1)
west = np.roll(dem, -1, axis=1)
north_east = np.roll(north, 1, axis=1)
north_west = np.roll(north, -1, axis=1)
south_east = np.roll(south, 1, axis=1)
south_west = np.roll(south, -1, axis=1)Then, using Horn’s formula, we calculate how much elevation changes east-west (dx) and north-south (dy), that will help us calculate the slope in degrees.
dx = ((north_east + 2*east + south_east - north_west - 2*west - south_west)
/ (8 * pixel_width))
dy = ((south_west + 2*south + south_east - north_west - 2*north - north_east)
/ (8 * pixel_height))
slope = np.degrees(np.arctan(np.sqrt(dx**2 + dy**2)))Note that all operations, including np.roll, np.degrees or np.arctan are performed on every pixel of the DEM, this is what we call vectorized operations. It is built-in to work faster and in a cleaner way than what a loop would do.
Before moving on to analyze our slope values, we need to correct for the issue with slope calculation at the map’s edges. When we do np.roll, the pixels of the first and last rows, together with pixels from the first and last column are moved to the other end of the raster and might induce errors locally. For this reason, we will discard them from our analysis by assigning them the ‘not a number’ (NaN) value.
slope[0, :] = np.nan
slope[-1, :] = np.nan
slope[:, 0] = np.nan
slope[:, -1] = np.nanIn the code above, we simply take all pixels from the first row [0,:], all pixels from the last row [-1,:], all pixels form the first column [:,0] and all pixels from the last column [:,-1] and set them to NaN using np.nan
Now - very importantly - the slope raster is a numpy object, which means it is a raster, but depleted of any spatial reference. This implies two things.

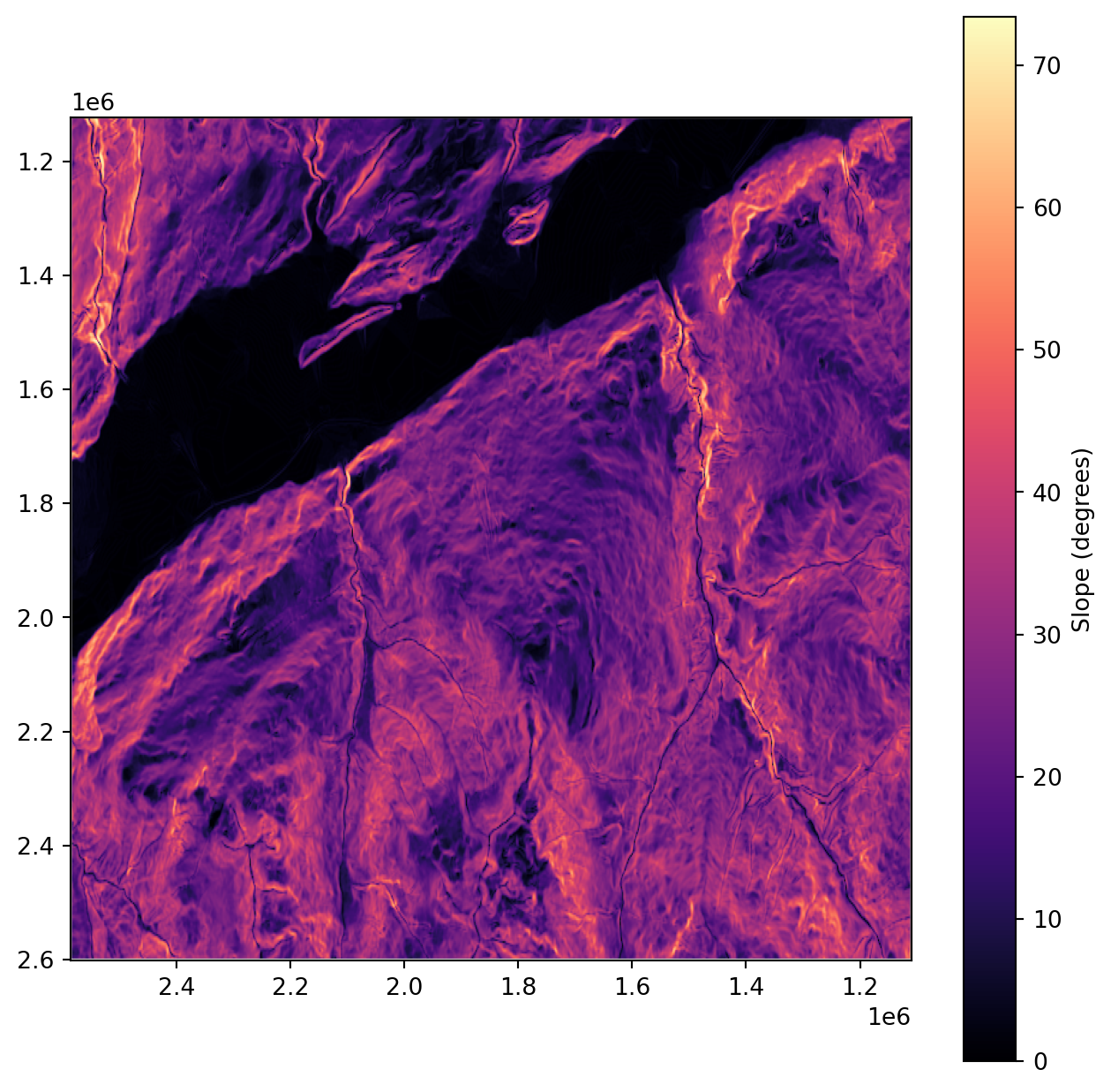

Firstly, to plot the data with coordinate extents, we need to specify the extent argument of plt.imshow. For this, use the bounds variable we got from Listing 1.
plt.imshow(slope)plt.imshow(slope, extent=bounds)plt.figure(figsize=(8, 8))
plt.imshow(
slope,
cmap="magma",
extent=bounds
)
plt.colorbar(label="Slope (degrees)")
plt.show()
Secondly, to save the data, we need to specify some more parameters compared to Listing 7. Specifically, we want to update the profile variable we got at Listing 1 to i) make sure we store the data as float 32 (→ a format that allows storing loads of decimals) and ii) we set the no data value to be a nan (→ a not a number format, equivalent to a transparent colour on QGIS).
profile.update(dtype="float32", nodata=np.nan)
with rasterio.open("data/outputs/slope.tif", "w", **profile) as dst:

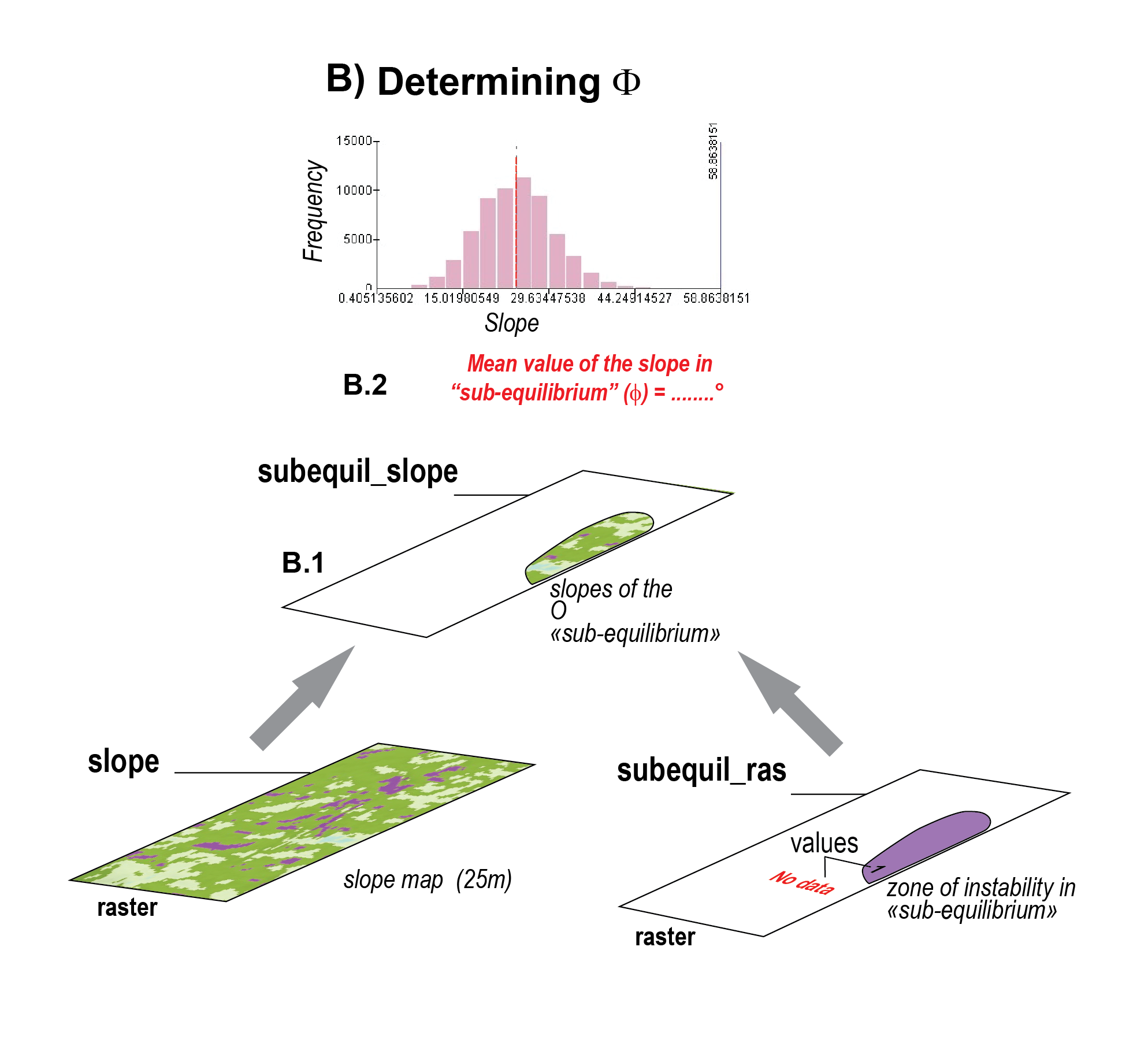

dst.write(slope.astype("float32"), 1)The file subequil_PLG_r.shp contains an area where instabilities have been observed in the field. Load it into a variable called subequil_PLG following Listing 2.
We will use this area to extract the slope from slope, so we need to rasterize it, but in a special format that can be used as a mask, which is done using the geometry_mask function.
subequilR = geometry_mask(
subequil_PLG.geometry,
transform=transform,
invert=True,
out_shape=shape
)rasterize and geometry_mask
So what is the difference between the rasterize function used in Listing 5 and the geometry_mask function used in Listing 11? The short answer is the type of data returned by the function.
Rasterize returns an integer type (e.g., 0, 1, 2, 3):
lithologiesR.dtypedtype('uint8')Geometry_mask returns a boolean type (e.g., True/False). This is the format commonly used to mask data:
subequilR.dtypedtype('bool')
We need to extract the slope contained within the mask we just created. Save it into a new variable called subequil_slope. Any idea how to do this using boolean indexing?

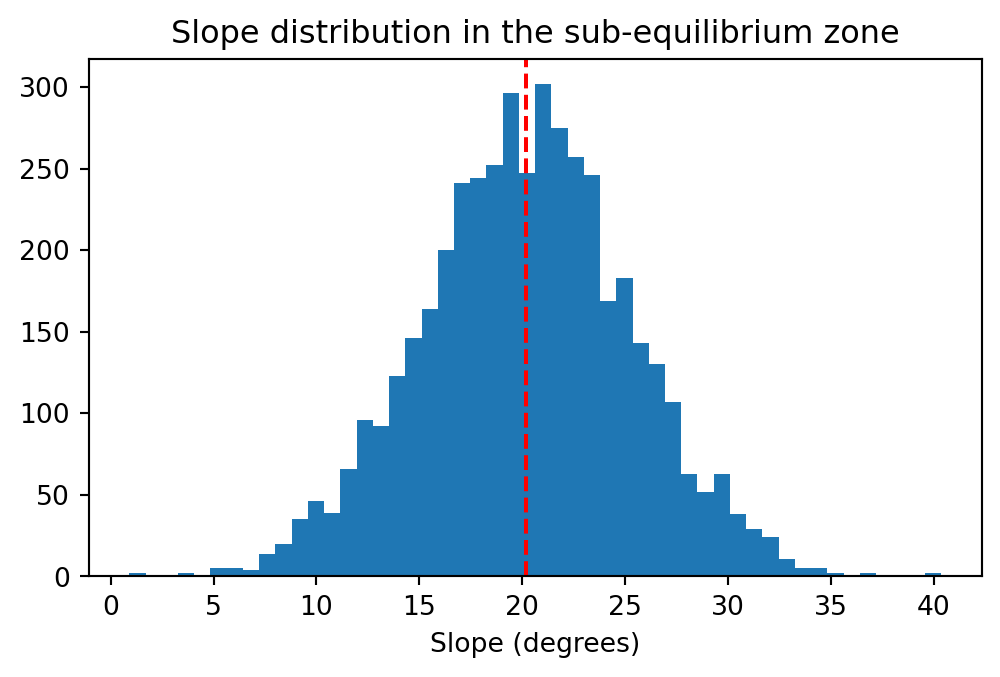

subequil_slope = slope[subequilR]We can plot a distribution of observed slope values within this zone using plt.hist. The mean value of this plot is the mean value of the slope in “sub-equilibrium”, which corresponds to the threshold above which instabilities can be reactivated.
fig, ax = plt.subplots(figsize=(6, 3.5))
ax.hist(subequil_slope, bins=50)
ax.axvline(np.nanmean(subequil_slope), color="red", linestyle="--")
ax.set_xlabel("Slope (degrees)")
ax.set_title("Slope distribution in the sub-equilibrium zone");
subequil_slope using the np.nanmean() function.phi_angle.

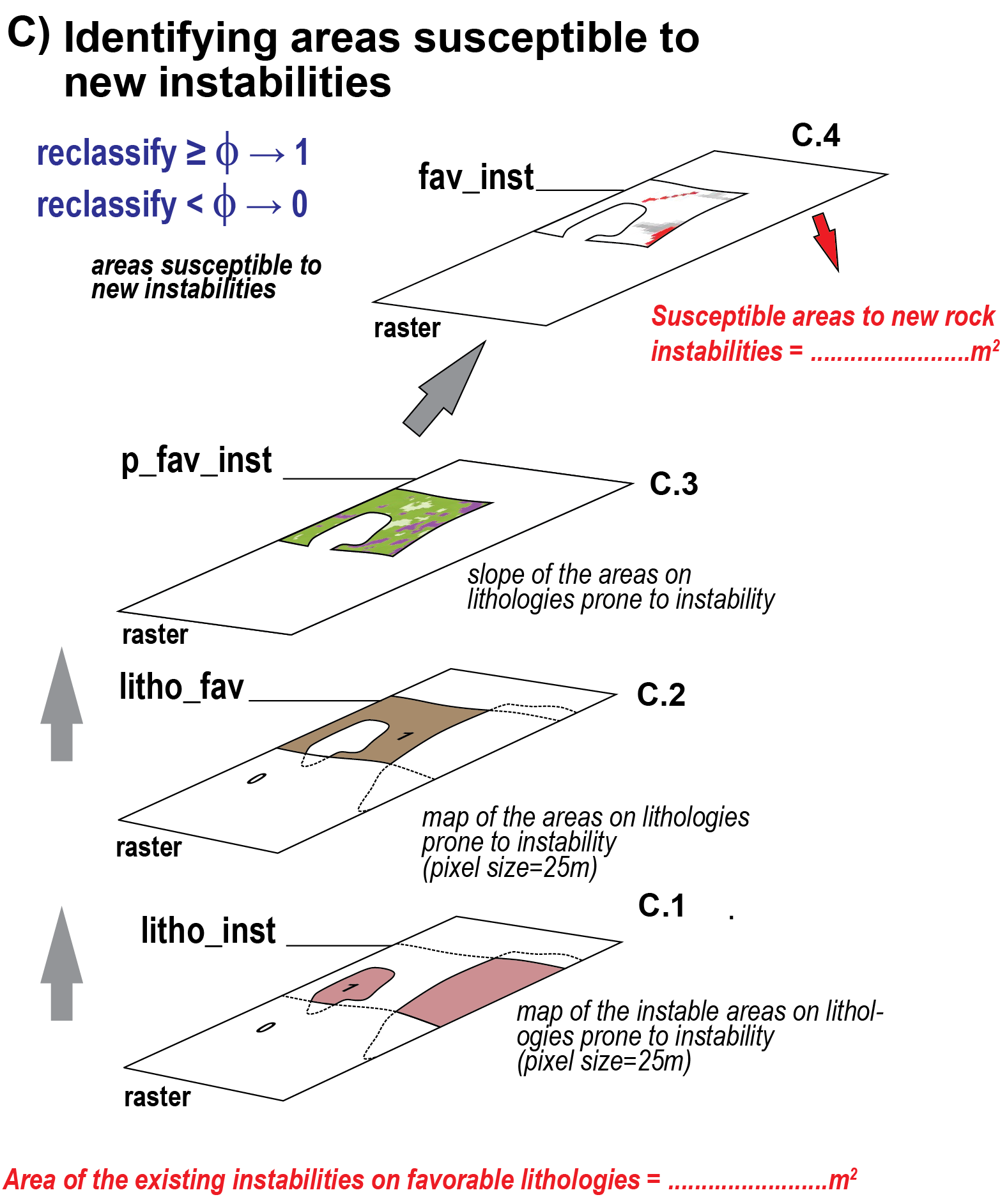

The next step identify areas where we have existing instabilities at locations where the lithology is favorable. For this, you need instabilitiesR (?@lst-instab_raster) and lithologiesR (Listing 5). Save it in a new variable name called litho_inst.
For this, we need to introduce logical operators. For instance:
lithologiesR == 1 returns a boolean raster (same as in Listing 11) where values of 1 are not set to True and values of 0 to False.instabilitiesR.Now, which logical operator would you use to identify the pixels where both rasters are True?
The operator AND (in Python &). Don’t forget to wrap each side of the operator in parentheses.
litho_inst = (lithologiesR==1) & (instabilitiesR==1)The next step is to estimate the area of zones on favourable lithologies outside instabilities.
litho_fav = (lithologiesR == 1) & (instabilitiesR == 0)We will now create a subset of the slope map for the pixels identified in litho_fav (@st-fl_ni). The slope might contains some no data values (→ np.nan), which we filter out using np.isfinite.
slope_p_fav_inst = slope[litho_fav]
slope_p_fav_inst = slope_p_fav_inst[np.isfinite(slope_p_fav_inst)]The next step is to identify is to identify the pixels in slope_p_fav_inst that have a slope ≥ \(\Phi\) (i.e., phi_angle). For this, we use the function np.where(). And since the doc for this function is the perfect example of how incomprehensible instructions might be for non experts, we provide you with the solution.
slope_class = np.where(slope > phi_angle, 1, 0)We can now identify the pixels in favourable lithologies that are prone to new instabilities.
p_fav_inst = (slope_class==1) & (litho_fav==1)

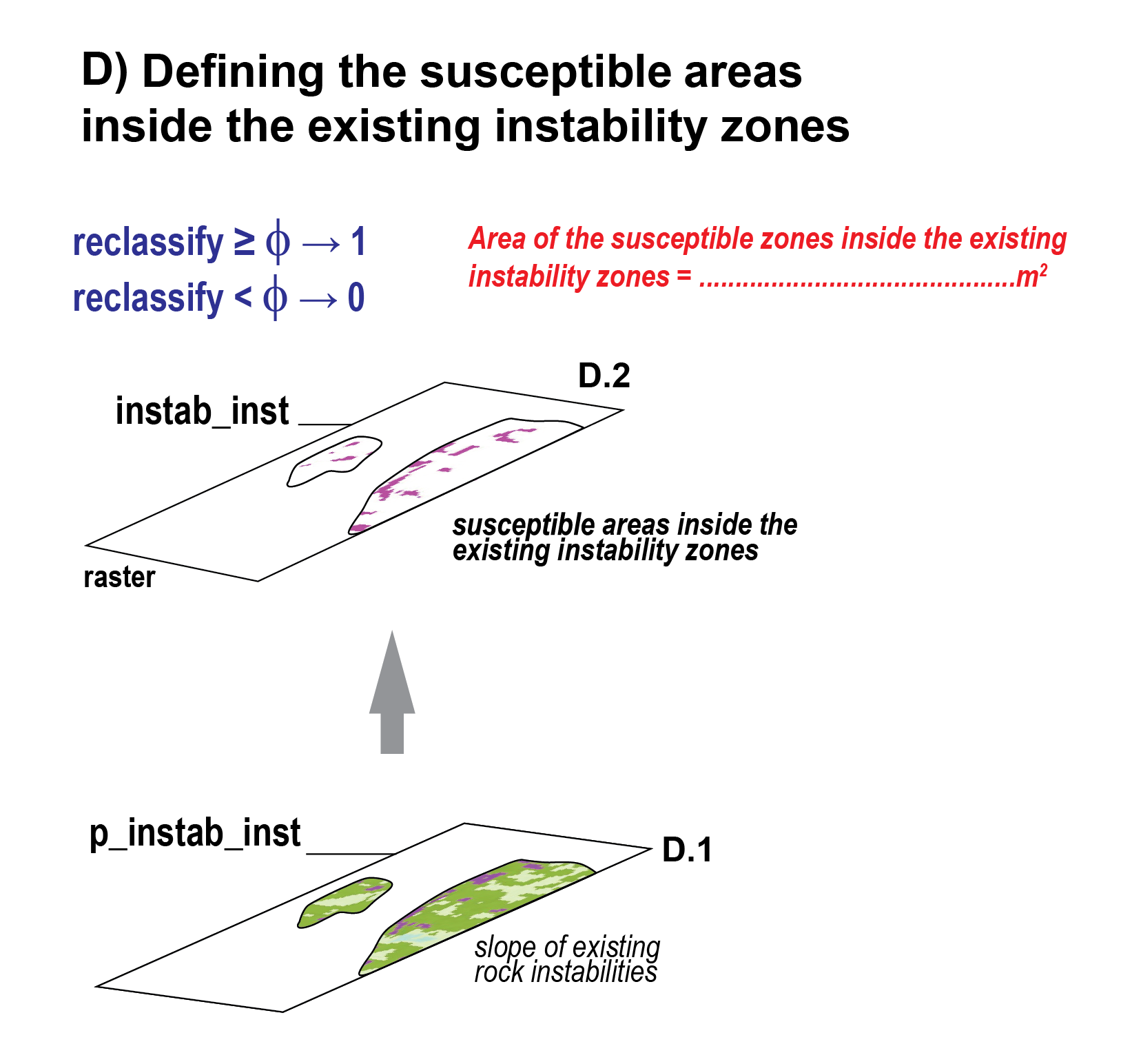

Repeat the same as step C4 but considering zones inside existing instabilities (→ instabilitiesR). Save it in a variable name called fav_inst.
Calculate the total area where we have a susceptibility to instabilities (→ p_fav_inst + fav_inst)
List your results. Provide all the necessary numbers used for the calculation. Make sure you round the digits to a reasonable number of decimals.
