How did Earth’s past climate vary across geological time, and how can we reconstruct it from numerical model outputs?
In this module, you will:
xarrayClimate models produce outputs in formats that are very different from the GeoTIFF rasters you have worked with so far. NetCDF is the standard format in climate and ocean sciences, and knowing how to read, inspect, and analyse these files is an essential skill for any geoscientist working with model data. Köppen-Geiger classification is a widely used framework to summarise complex climate information into a simple, interpretable map.
Load the data: Open a NetCDF file for a chosen reconstruction age.
1.1. Inspect the dimensions, coordinates, and variables.
1.2. Read the variable attributes to understand units and provenance.
Explore the data: Select and print subsets of the data.
2.1. Extract temperature values for a single month.
2.2. Extract a time series for a specific location (e.g. Geneva).
Convert units: Transform raw model outputs into usable units.
3.1. Convert temperature from Kelvin to Celsius.
3.2. Convert precipitation from m s⁻¹ to mm/month.
Classify climate zones: Apply the Köppen-Geiger algorithm.
4.1. Compute temperature and precipitation derived quantities.
4.2. Write and apply the classification function grid cell by grid cell.
Mask and visualise: Fetch a land mask and plot the final map.
5.1. Request the palaeogeography layer from the PANALESIS GeoServer.
5.2. Resample the mask to match the climate grid resolution.
5.3. Apply the mask and plot the Köppen-Geiger map.
xarray.In the second part of the exercise, we extended our analysis on other maps beyond palaeogeography:
rasterio.plot.show_hist or its mean value.xarray and rioxarray to work efficiently with several GeoTiFF layers that share the same extent and resolution.numpypandas.In this last part, we will have a look at another data format that is very common in the geosciences: NetCDF (abbreviation for Network Common Data Form). Unlike the GeoTiFF format that requires one file per map, a NetCDF is like a labelled can hold many variables (temperature, precipitation…) each with their own dimensions (space, time) and metadata, all in one file.
| Feature | GeoTIFF | NetCDF |
|---|---|---|
| File extension | .tif |
.nc |
| Typical use | Single raster layer (e.g. one image) | Multiple variables + time dimensions |
| Dimensions | 2D (rows × cols) | N-dimensional (e.g. month × lat × lon) |
| Metadata | Limited | Rich, self-describing |
| Common in | Remote sensing, GIS | Climate science, oceanography |
| Python library | rasterio, rioxarray |
xarray, netCDF4 |
We will learn how to read NetCDF files, understand their metadata, and turn input data related to precipitation and temperature into climate zones maps (Köppen-Geiger) for the entire Phanerozoic.
This tutorial requires the following libraries:
xarraynumpymatplotlibrequestsrasterioscipyYou can check if they are installed (and check which version you have) by running:
libs = ["xarray", "numpy", "matplotlib", "requests", "rasterio", "scipy"]
for lib in libs:
try:
module = __import__(lib)
print(lib + " is installed")
except ImportError:
print(lib + " is NOT installed")xarray is installed
numpy is installed
matplotlib is installed
requests is installed
rasterio is installed
scipy is installedIf you encounter an error, come back to Chapter II: Setting up your Python environment and follow the instructions.
Let’s first load a file from the data/climate folder. We have one file per reconstruction age. The last 4 digits in the filename represents the age in millions of years (Ma), written to 4 digits style. For example, 0 Ma → 0000, 100 Ma → 0100, 444 Ma → 0444. By using a regular expression (regex) from the re library, selecting an age can be done like:
import xarray as xr
import numpy as np
age = 100
nc_path = f"data/climate/panalesis_version_0_plasim-genie_tas_pr_{str(age).zfill(4)}Ma.nc"
ds = xr.open_dataset(
nc_path,
engine="netcdf4"
)
print(ds)<xarray.Dataset> Size: 197kB
Dimensions: (month: 12, latitude: 32, longitude: 64)
Coordinates:
* month (month) int32 48B 1 2 3 4 5 6 7 8 9 10 11 12
* latitude (latitude) float32 128B 85.76 80.27 ... -85.76
* longitude (longitude) float64 512B -180.0 -174.4 ... 174.4
Data variables:
temperature_surface_air (month, latitude, longitude) float32 98kB ...
precipitation_total (month, latitude, longitude) float32 98kB ...
Attributes:
title: Monthly mean near-surface air temperature and tota...
institution: ETH Zürich – Dept. of Earth & Planetary Sci. © Nik...
Conventions: CF-1.8
pCO2: 1947.002
solar_constant: 1353.5
pCO2_units: ppm
solar_constant_units: W m-2
age: 100.0
age_units: Ma (millions of years before present)
paleogeography: Panalesis version 0 (Franziskakis et al. 2025)
length_of_simulation: 3000 model years with 1:10 atmosphere:ocean gearing→ Have a look at the metadata: how is the data organized ? What is the resolution ?
→ Does this give you enough information about the data source ?
Every variable in a NetCDF file carries attributes: metadata describing what the variable is, its units, and more. This follows the CF Conventions standard. Let’s have a look at the air surface temperature variable:
print(ds["temperature_surface_air"].attrs){'standard_name': 'air_temperature', 'long_name': 'Near-surface air temperature', 'units': 'K'}Thanks to the structure of the input data and how we read it using xarray, it is possible to access only selected slices of the entire dataset. For instance, we can select only one variable:
temp = ds["temperature_surface_air"]
print(temp)<xarray.DataArray 'temperature_surface_air' (month: 12, latitude: 32,
longitude: 64)> Size: 98kB
[24576 values with dtype=float32]
Coordinates:
* month (month) int32 48B 1 2 3 4 5 6 7 8 9 10 11 12
* latitude (latitude) float32 128B 85.76 80.27 74.74 ... -80.27 -85.76
* longitude (longitude) float64 512B -180.0 -174.4 -168.8 ... 168.8 174.4
Attributes:
standard_name: air_temperature
long_name: Near-surface air temperature
units: KWe can also select a single month, using .sel() which selects data by label (e.g. month=1):
temp_jan = temp.sel(month=1)
print(temp_jan)<xarray.DataArray 'temperature_surface_air' (latitude: 32, longitude: 64)> Size: 8kB
[2048 values with dtype=float32]
Coordinates:
* latitude (latitude) float32 128B 85.76 80.27 74.74 ... -80.27 -85.76
* longitude (longitude) float64 512B -180.0 -174.4 -168.8 ... 168.8 174.4
month int32 4B 1
Attributes:
standard_name: air_temperature
long_name: Near-surface air temperature
units: KOr even a given location. For instance, if we take the approximate location of Geneva (lat/lon). The method="nearest" finds the grid cell with the centroid that is closest to your input coordinates:
temp_geneva = temp.sel(latitude=46.2, longitude=6.1, method="nearest")
print(temp_geneva)
print(temp_geneva.values)<xarray.DataArray 'temperature_surface_air' (month: 12)> Size: 48B
[12 values with dtype=float32]
Coordinates:
* month (month) int32 48B 1 2 3 4 5 6 7 8 9 10 11 12
latitude float32 4B 47.07
longitude float64 8B 5.625
Attributes:
standard_name: air_temperature
long_name: Near-surface air temperature
units: K
[282.61826 282.5746 283.89636 287.60983 290.13657 293.08612 295.2669
295.68762 293.59634 289.4877 285.94287 283.80334]→ Notice how the basic print returns the entire subset structure with the new dimensions and attributes. If you want to print the values, you need to specify it, but **be careful” to do this only when you have a small subset.
→ We asked for the Geneva location, but where is the closest pixel centroid point located ?
→ What were the temperatures 100 millions years ago at this location?
→ What does this tell you about the model resolution ?

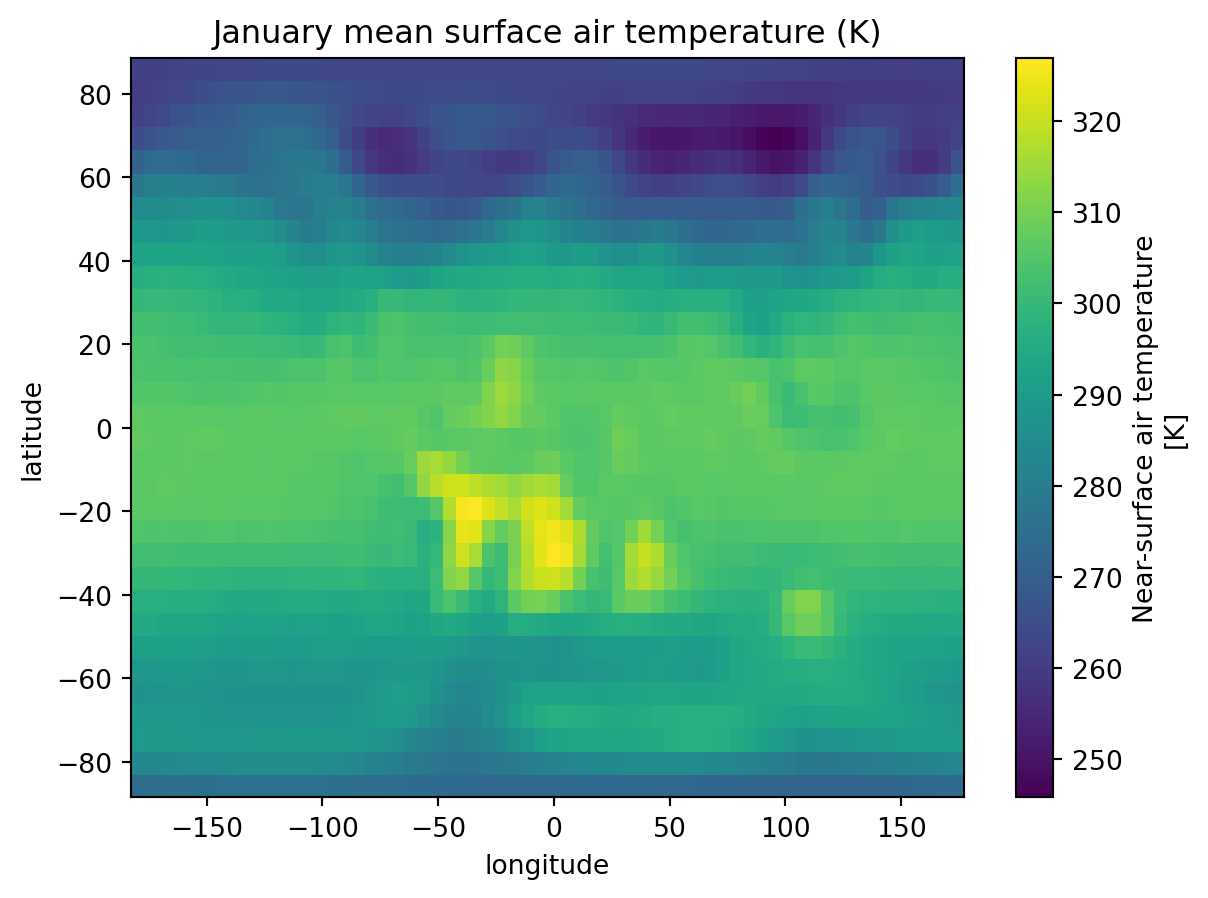

Let’s now have a look at our data by plotting it, reusing the January subset we did before.
import matplotlib.pyplot as plt
temp_jan.plot()
plt.title("January mean surface air temperature (K)")
plt.show()
As you noticed, the units for temperature are in Kelvin and precipitation are in meters per seconds. Before any analysis, we need to convert both variables to standard units, in our case this would be degrees Celsius and millimeters per month.
temp_c = ds["temperature_surface_air"] - 273.15
temp_c.attrs["units"] = "°C"
seconds_per_day = 86400
days_per_month = [31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31]
days = xr.DataArray(days_per_month, coords=[ds.month], dims=["month"])
precip_mm = ds["precipitation_total"] * seconds_per_day * days * 1000
precip_mm.attrs["units"] = "mm/month"We now have everything we need to classify each grid cell into a climate zone.
For the classification we need to know how warm or cold each grid cell gets. The coldest and warmest month determine whether a climate is polar, temperate, or continental. The number of months above 10°C is a proxy for the growing season.
t_annual = temp_c.mean(dim="month")
t_min = temp_c.min(dim="month")
t_max = temp_c.max(dim="month")
months_above_10 = (temp_c > 10).sum(dim="month")Precipitation seasonality is just as important as the total amount. A climate with dry summers behaves very differently from one with dry winters, even if the annual total is the same. We split the year into summer (Apr–Sep) and winter (Oct–Mar) halves to detect this seasonality.
p_annual = precip_mm.sum(dim="month")
p_min = precip_mm.min(dim="month")
p_max = precip_mm.max(dim="month")
p_summer = precip_mm.sel(month=[4,5,6,7,8,9]).sum(dim="month")
p_winter = precip_mm.sel(month=[1,2,3,10,11,12]).sum(dim="month")Group B (arid) climates are defined by precipitation being too low relative to evaporation demand. Evaporation increases with temperature, so the threshold is not a fixed number but depends on the annual mean temperature. We will use a simplified version of the standard formula:
p_threshold = 2 * t_annual + 28The full Köppen formula adjusts p_threshold based on precipitation seasonality (adding 0 to 28 mm depending on whether rain falls in summer or winter). Here we use a fixed offset of +28 for simplicity.
Let’s write a function that takes the pre-computed quantities for a single grid cell and returns its 2-letter Köppen-Geiger code. The logic follows the standard hierarchical order: polar first, then arid, tropical, temperate and continental.
def classify_koppen(t_ann, t_mn, t_mx, p_ann, p_mn, p_sum, p_win, p_thr):
# E: Polar (warmest month too cold for tree growth)
if t_mx < 0:
return "EF" # ice cap
if t_mx < 10:
return "ET" # tundra
# B: Arid (precipitation too low relative to evaporation)
if p_ann < p_thr:
if p_ann < 0.5 * p_thr:
return "BW" # desert
return "BS" # steppe
# A: Tropical (coldest month still warm (>= 18°C))
if t_mn >= 18:
if p_mn >= 60:
return "Af" # rainforest
if p_mn >= 100 - p_ann / 25:
return "Am" # monsoon
return "Aw" # savanna
# C: Temperate (coldest month between -3°C and 18°C)
if t_mn > -3:
if p_sum > 10 * p_win:
return "Cs" # dry summer
if p_win > 3 * p_sum:
return "Cw" # dry winter
return "Cf" # no dry season
# D: Continental (coldest month below -3°C)
if p_sum > 10 * p_win:
return "Ds" # dry summer
if p_win > 3 * p_sum:
return "Dw" # dry winter
return "Df" # no dry seasonWe now loop over every grid cell and apply the function. This will give us a numpy array (2D) with the two-letters classes for each cell.
n_lat = len(ds.latitude)
n_lon = len(ds.longitude)
koppen = np.full((n_lat, n_lon), "", dtype=object)
for i in range(n_lat):
for j in range(n_lon):
koppen[i, j] = classify_koppen(
t_ann = float(t_annual[i, j]),
t_mn = float(t_min[i, j]),
t_mx = float(t_max[i, j]),
p_ann = float(p_annual[i, j]),
p_mn = float(p_min[i, j]),
p_sum = float(p_summer[i, j]),
p_win = float(p_winter[i, j]),
p_thr = float(p_threshold[i, j])
)
print(np.unique(koppen))['Af' 'Am' 'Aw' 'BS' 'BW' 'Cf' 'Cw' 'Df' 'Dw' 'EF' 'ET']Let’s now plot our map to inspect the results.
koppen_classes = {
"ET": (1, "#C0C0C0"),
"EF": (2, "#FFFFFF"),
"Dw": (3, "#8B0000"),
"Ds": (4, "#B22222"),
"Df": (5, "#CD5C5C"),
"Cw": (6, "#2E8B57"),
"Cs": (7, "#87CEFA"),
"Cf": (8, "#1E90FF"),
"BW": (9, "#DAA520"),
"BS": (10, "#F4A460"),
"Aw": (11, "#9ACD32"),
"Am": (12, "#32CD32"),
"Af": (13, "#006400"),
}
koppen_num = np.zeros((n_lat, n_lon))
for i in range(n_lat):
for j in range(n_lon):
if koppen[i, j] in koppen_classes:
koppen_num[i, j] = koppen_classes[koppen[i, j]][0]
from matplotlib.colors import ListedColormap, BoundaryNorm
codes = list(koppen_classes.keys())
colors = [koppen_classes[k][1] for k in codes]
cmap = ListedColormap(colors)
norm = BoundaryNorm(boundaries=np.arange(0.5, len(codes) + 1.5), ncolors=len(codes))
# Plot

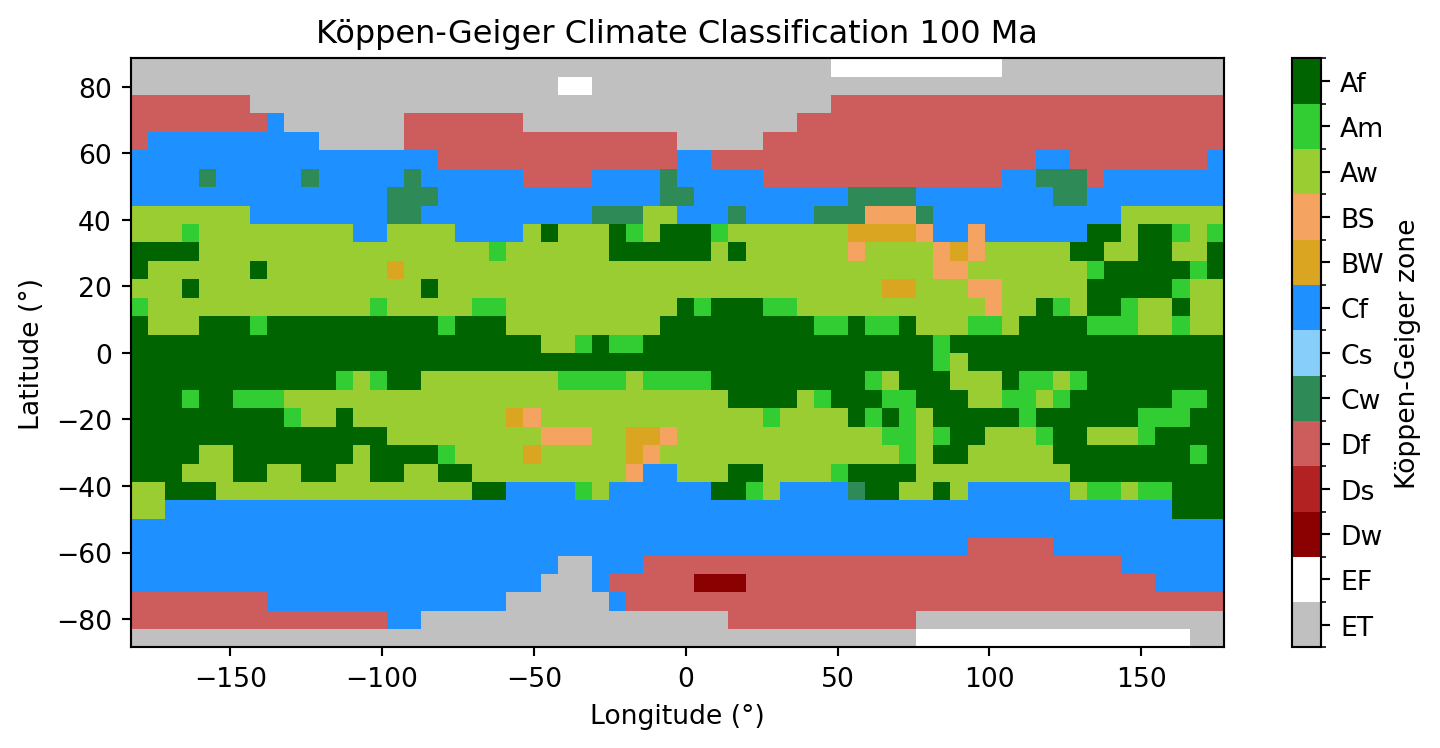

fig, ax = plt.subplots(figsize=(8, 4))
im = ax.pcolormesh(
ds.longitude.values,
ds.latitude.values,
koppen_num,
cmap=cmap,
norm=norm
)
cbar = plt.colorbar(im, ax=ax, ticks=np.arange(1, len(codes) + 1))
cbar.ax.set_yticklabels(codes)
cbar.set_label("Köppen-Geiger zone")
ax.set_title(f"Köppen-Geiger Climate Classification {int(ds.attrs['age'])} Ma")
ax.set_xlabel("Longitude (°)")
ax.set_ylabel("Latitude (°)")
plt.tight_layout()
plt.show()
For clarity, here is a quick overview of the 13 climate zones we classify:
| Code | Name | Key characteristics |
|---|---|---|
Af |
Tropical rainforest | No dry season, every month > 60 mm |
Am |
Tropical monsoon | Short dry season, high annual rainfall |
Aw |
Tropical savanna | Pronounced dry winter season |
BS |
Semi-arid steppe | Low rainfall, not quite desert |
BW |
Arid desert | Very low rainfall, hot or cold |
Cf |
Temperate, no dry season | Mild winters, rain year-round |
Cs |
Temperate, dry summer | Mediterranean-type climate |
Cw |
Temperate, dry winter | Mild winters, summer rains |
Df |
Continental, no dry season | Cold winters, rain year-round |
Ds |
Continental, dry summer | Cold winters, dry summers |
Dw |
Continental, dry winter | Very cold winters, summer rains |
ET |
Tundra | Warmest month between 0–10°C |
EF |
Ice cap | Warmest month below 0°C, permanent ice |

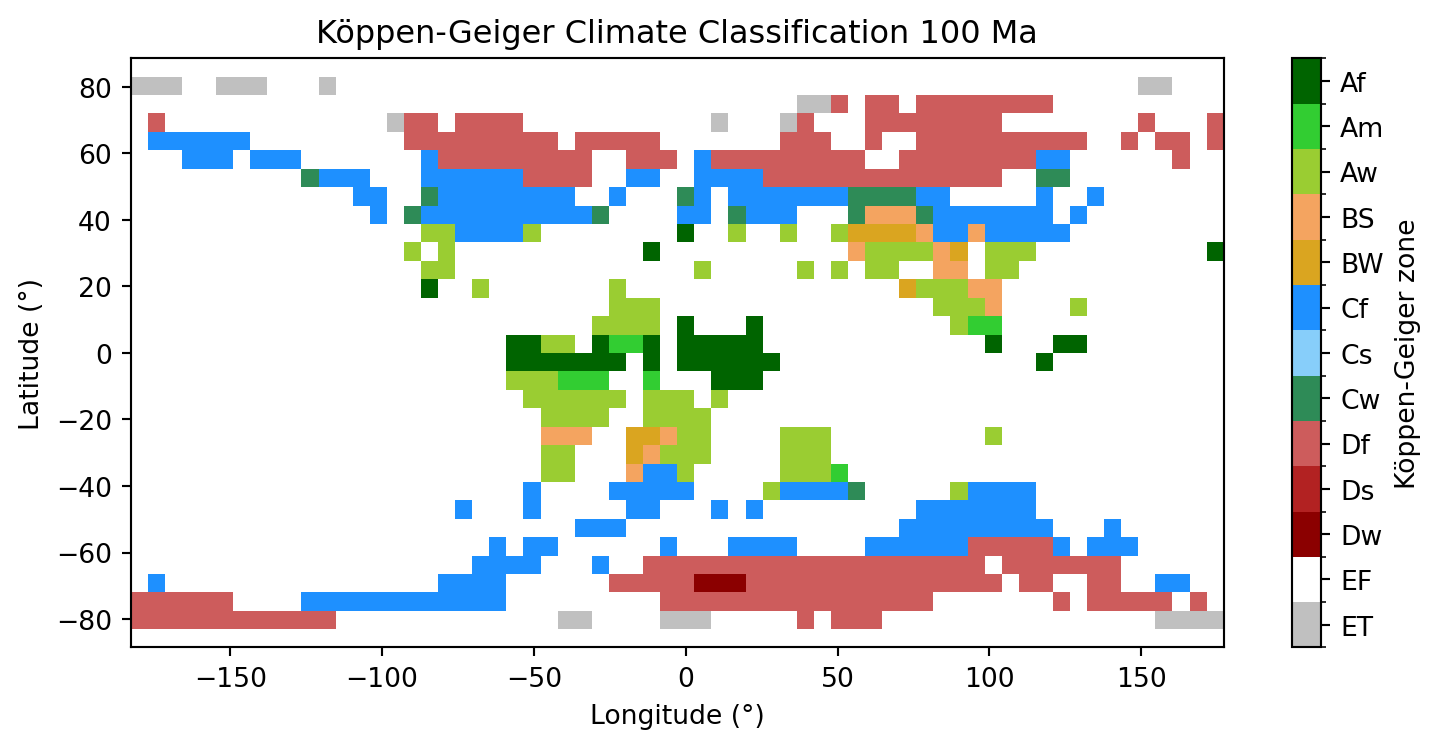

The climate model runs over the full grid including ocean cells. To show only land areas in our Köppen-Geiger map, we will create a land mask directly from the PANALESIS GeoServer, as we used in the first two parts of this exercise.
The time convention is the same as before: geological age in Ma is added to the year 2000 (e.g. 100 Ma → 2100-01-01T00:00:00.000Z).
import requests
from rasterio.io import MemoryFile
from scipy.ndimage import zoom
base_url = "https://geoserver.panalesis.org/geoserver/"
workspace = "panalesis_atlas_epsg_4326"
layer_name = "palaeogeography_4326"
crs = "EPSG:4326"
bbox = "-180,-90,180,90"
resx = "0.1"
resy = "0.1"
time = f"{2000 + age}-01-01T00:00:00.000Z"
wcs_url = (
f"{base_url}{workspace}/wcs?"
f"service=WCS&version=1.0.0&request=GetCoverage&"
f"coverage={workspace}:{layer_name}&"
f"crs={crs}&bbox={bbox}&resx={resx}&resy={resy}&"
f"time={time}&format=GEOTIFF"
)
data = requests.get(wcs_url).content
with MemoryFile(data) as memfile:
with memfile.open() as dataset:
mask_raw = dataset.read(1).astype(float)
nodata = dataset.nodata
if nodata is not None:
mask_raw[mask_raw == nodata] = np.nan
land_mask_hires = mask_raw >= 0Our elevation data (from palaeogeography) has a resolution of 0.1°, which is much more higher resolution than the climate data (approx 5.6°). We need to resample it down using scipy.ndimage.zoom with order=0 (nearest neighbour) and keep a cell as land if more than 50% of the high-resolution pixels are land. This is an approximation but will give us an overview globally.
zoom_factors = (n_lat / land_mask_hires.shape[0],
n_lon / land_mask_hires.shape[1])
land_mask = zoom(land_mask_hires.astype(float), zoom_factors, order=0) > 0.5
print(f"Mask shape: {land_mask.shape}")Mask shape: (32, 64)→ Does the land mask shape matches the climate data ?
→ What other method could we use to have mathing resolutions accross both maps?
Now that we have our land mask, we need to apply it to our Köppen-Geiger classes, by converting all pixels not on land as np.nan. This implies converting the original data type (integers) to float numbers, because integers cannot describe np.nan.
koppen_num_masked = koppen_num.astype(float).copy()
koppen_num_masked[~land_mask] = np.nanFinally, we can plot the updated map:
fig, ax = plt.subplots(figsize=(8, 4))
im = ax.pcolormesh(
ds.longitude.values,
ds.latitude.values,
koppen_num_masked,
cmap=cmap,
norm=norm
)
cbar = plt.colorbar(im, ax=ax, ticks=np.arange(1, len(codes) + 1))
cbar.ax.set_yticklabels(codes)
cbar.set_label("Köppen-Geiger zone")
ax.set_title(f"Köppen-Geiger Climate Classification {int(ds.attrs['age'])} Ma")
ax.set_xlabel("Longitude (°)")
ax.set_ylabel("Latitude (°)")
plt.tight_layout()
plt.show()
→ Extend this analysis to the entire Phanerozoic.
→ How could such a time-series be used in future studies to understand long-term evolution of the Earth surface ?
scipy A Python library for scientific computing, providing tools for statistics, optimization, interpolation, and signal processing built on top of numpy
